DESCRIPTION
Our TTI range use high quality ‘Lemo’ connectors for the Pt100 inputs. This simple accessory provides 4mm Terminal Posts for the connection of bare wires, spade terminals or 4mm plugs – useful if a lot of probes are going to be used with the instrument.
The adaptor connects to the TTI via two flexible cables, terminated with the appropriate Lemo connector.
There are two models, one for the TTI-7, TTI-10 or milliK and a second for the TTI-22.
SPECIFICATION
| Technical Feature | Value |
|---|---|
| Dimensions | Height 68mm (including feet) Width 140mm Depth 185mm (including connectors) |
| Weight | 0.660kg |
| How to order | 956 Terminal Adaptor suits milliK, TTI-6, TTI-7 or TTI-10 956/TTI-22 Terminal Adaptor for TTI-22 |
DOWNLOADS

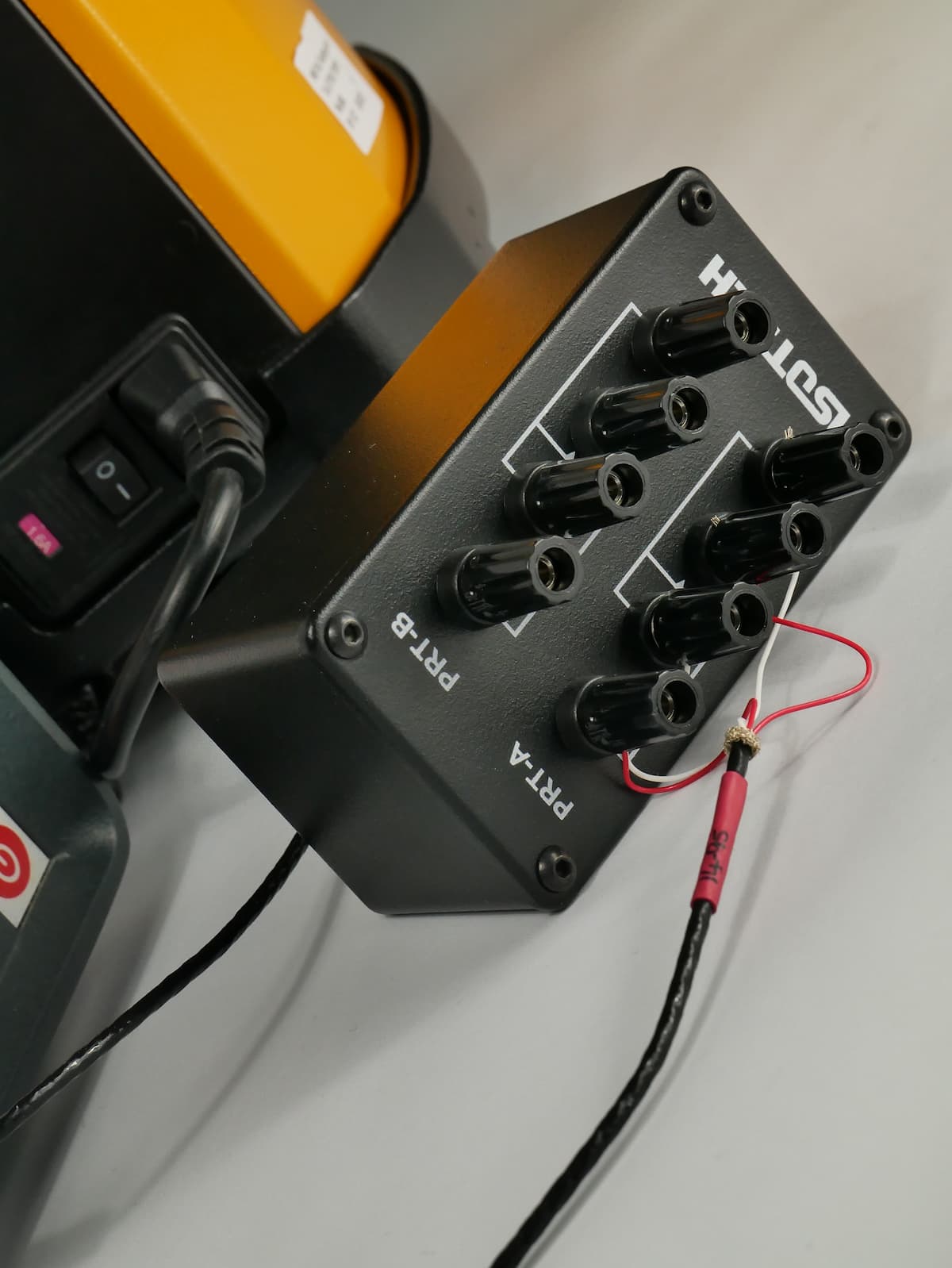

Terminal Adapter Model 956
Our TTI range use high quality ‘Lemo’ connectors for the Pt100 inputs. This simple accessory provides 4mm Terminal Posts for the connection of bare wires, spade terminals or 4mm plugs - useful if a lot of probes are going to be used with the instrument.
- Time Saving
- Accepts Bare Wire, Spades or Banana Plugs
- Suits a wide range of Isotech instruments
