DESCRIPTION
Need advice on which model? Dry Block Selection Guide
Fast-Cal – the product range you designed !
During early 2004 20 experienced engineers from many parts of the world were asked to produce their ideal specification for industrial calibration. Their top ten requirements, in order of priority, are: Rugged, Lightweight, Easy to use on site, Low cost/high benefit ratio, Fast response, high stability, Time saving features, Multiple sensor testing, Software, Modern design, Compliant with the latest regulations.
One model is ideal for the validation of Washer Disinfectors, Steam Sterilisers and Autoclaves. In place of a removable insert it has a fixed block with pockets for a reference probe and the type of test sensor commonly used in validation applications.
SPECIFICATION
| Model | Medium |
|---|---|
| Range at 20°C | 30 to 350°C |
| Stability | 0.03°C |
| Accuracy – basic | ±0.3°C |
| Accuracy – complete (2) | ±0.2°C |
| Heating Time | 50 to 350°C in 15 minutes |
| Cooling Time | 350 to 100°C in 40 minutes |
| Calibration Capacity | 148mm depth 25mm Ø |
| Power | 750W |
| Traceable Certificate | Included |
| UKAS Certificate | Extra |
| PC Communications | Included |
| Software | Included |
| 4-20mA Input | Complete Models |
| Ramps and Dwells | Yes with Software |
| Dimensions | 228 x 248 x 143mm |
| Weight | 6.35kg |
VIDEOS
DOWNLOADS
Fast-Cal Medium
30°C to 350°C
During a recent Isotech seminar, twenty experienced engineers from many parts of the world were asked to produce their ideal specification for industrial Dry Block Calibrators. Their top ten requirements, in order of priority, are listed below. 1. Rugged 2. Light weight 3. Easy to use on site 4. Low cost / high benefit ratio 5. Fast response, high stability 6. Time saving features 7. Multiple sensor testing 8. Software 9. Modern design 10. Compliant with the latest regulations The result is our new range of Fast-Cal dry block calibrators
- 25 x 148mm Calibration Volume
- Rugged
- Lightweight
- Easy to use on site
We are online and ready to chat to you if you need any advice and support, or if you prefer you can fill out the form below.
Or call +44 01704 543830
Related products
-

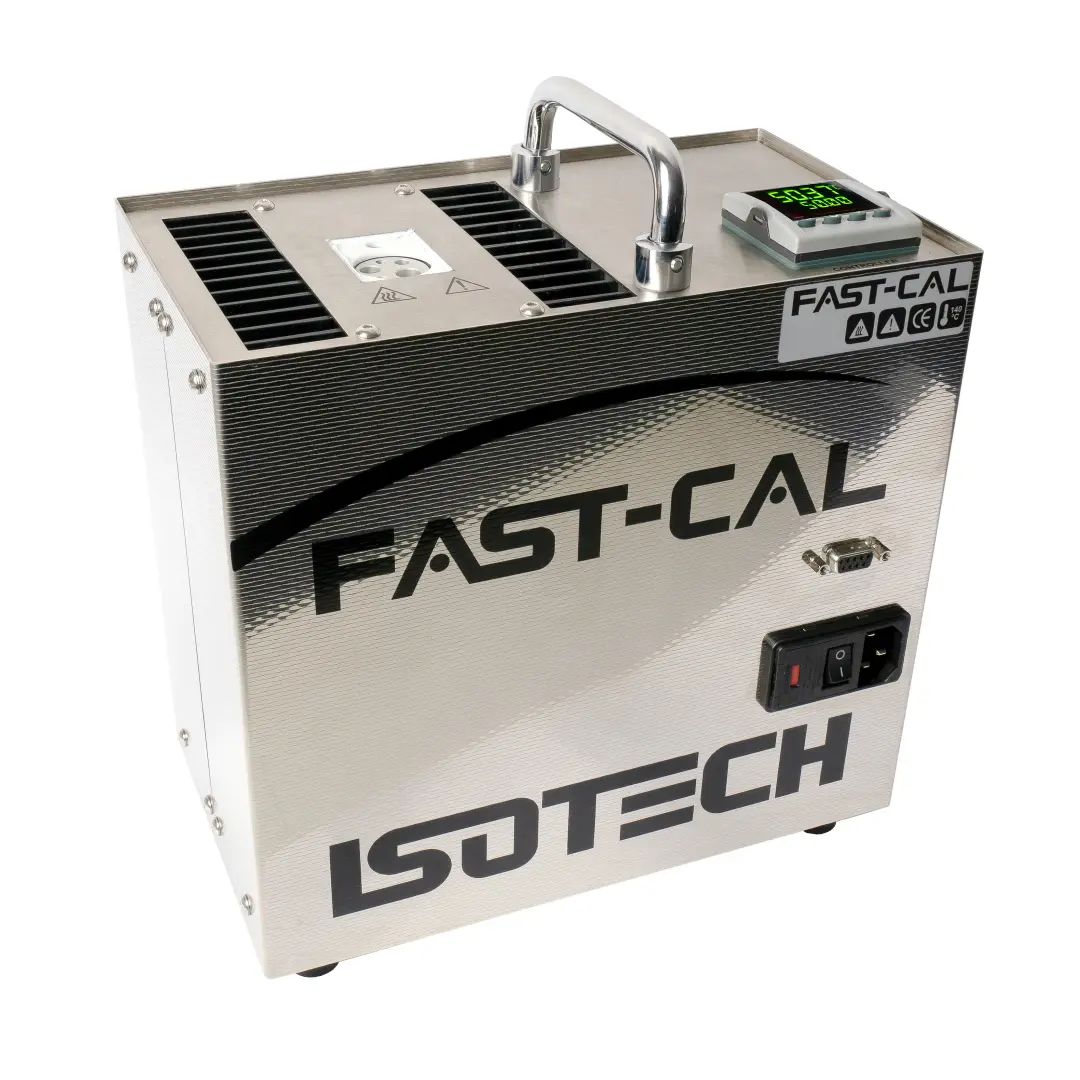

Read moreFast-Cal Low
