DESCRIPTION

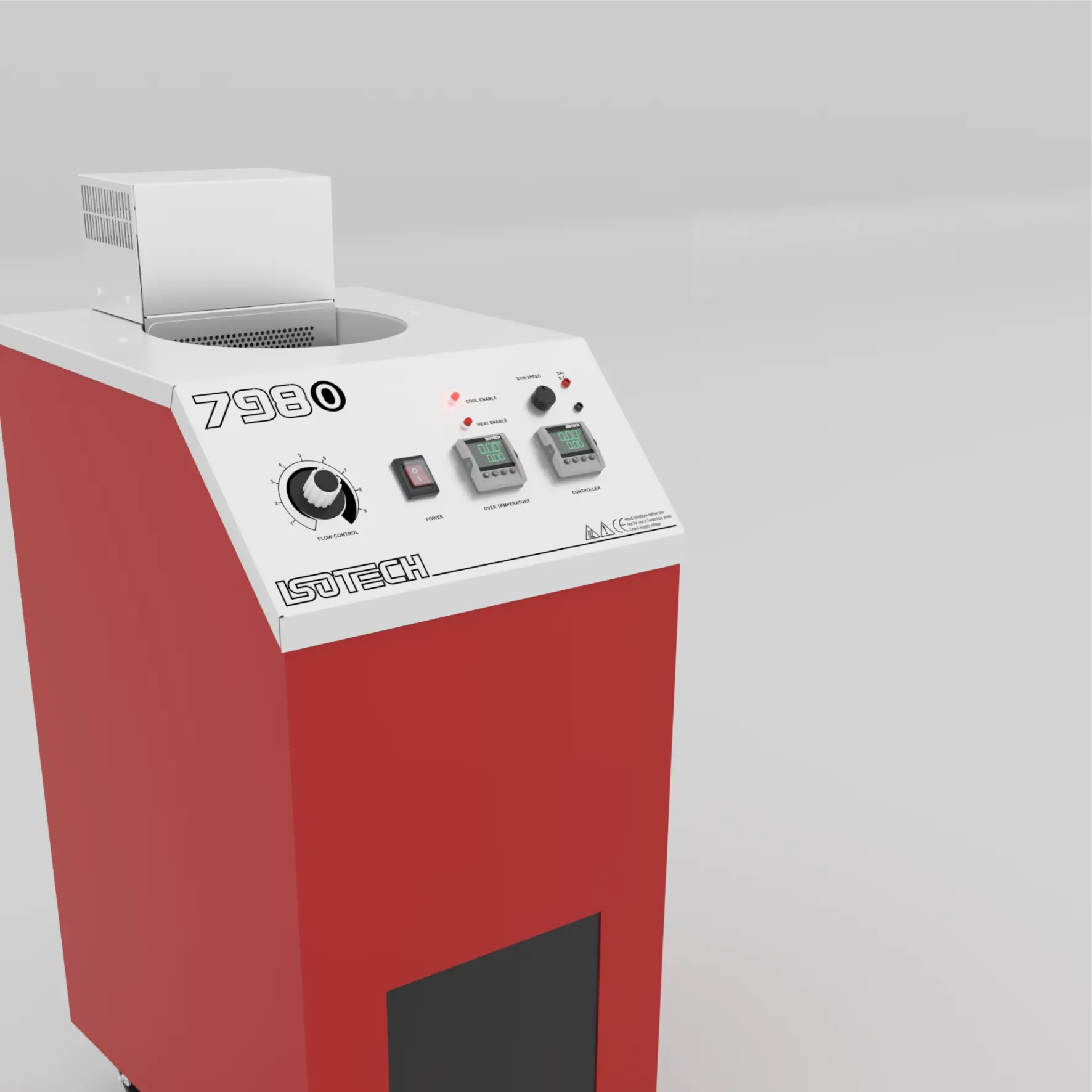

The Isotech 798O Stirred Liquid Bath is an evolution in precision calibration that builds upon the legacy of the Isotech 798 series. This comparison bath is designed to meet the growing demands for high-volume and specialized calibration, including oceanographic sensors, with its expanded calibration volume.
Compared to Isotech’s other baths, the large volume of the 798O allows the calibration of more thermometers and sensors simultaneously. This capability significantly enhances workflow efficiency, especially in environments where high-volume calibration is required.
The 798O stands out with its precise oceanographic sensor calibration capabilities, enhanced by specialized accessories and additional tanks for saltwater calibration, “Oceanographic Calibration Reservoirs, (OCR)”. This adaptability highlights the 798O’s versatility in meeting a wide variety of needs. Its energy-efficient design ensures operational cost savings and minimizes environmental impact, aligning with the eco conscious principles.
Designed to surpass traditional large volume saltwater baths, the 798O offers faster calibration cycles, essential for time-sensitive processes. This highlights Isotech’s commitment to innovation. Supported by Isotech’s renowned quality assurance and comprehensive aftersales support, the 798O delivers reliability, durability, and accuracy, making it a trusted solution for precise temperature control and calibration needs.
Capable of handling a wide range of calibration tasks, the 798O’s versatility makes it an invaluable device in laboratories, research institutions, and industries requiring precise temperature calibration.
Its operational efficiency and advanced features solidify its status as a future-proof solution that integrates seamlessly into calibration workflows, providing unmatched performance and reliability. The Isotech 798O Stirred Liquid Bath sets new standards in calibration technology, offering precision, speed, and an eco-friendly approach to modern calibration challenges.
SPECIFICATION
| Model | 798O |
|---|---|
| Temperature Range | -40°C to 125°C |
| Volume | 798O: 240mm Diameter, 310mm Deep (14 Litres) OCR Salt Water Tank: 226mm Diameter, 250mm Deep (5.3 Litres) |
| Stability | 0.003°C to 0.01°C (see data sheet) |
| Axial Uniformity | < 0.016°C (see data sheet) |
| Radial Uniformity | < 0.009°C (see data sheet) |
| Heating Time | 20°C to 125°C < 75 mins |
| Cooling Time | 125°C to 40°C < 12 hours 20°C to 0°C < 120 minutes 20°C to -30°C < 300 minutes |
| Cooling Time using Internal Cooling Coil | 125°C to 40°C < 3 hours |
| Communications | Includes Serial Interface, PC Cable and Software |
| Dimensions | 405mm Wide, 610mm Deep, 980mm High (870mm to Top Panel) |
| Weight | 59kg |
| Power | 1.5kW 110V 50/60Hz or 230V 50/60Hz |
DOWNLOADS
798O Large Volume Stirred Liquid Bath
-40 to 125°C
- Calibrate a larger number of probes simultaneously
- Specialized for Oceanographic Sensor Calibration
- Option for salt water tanks
