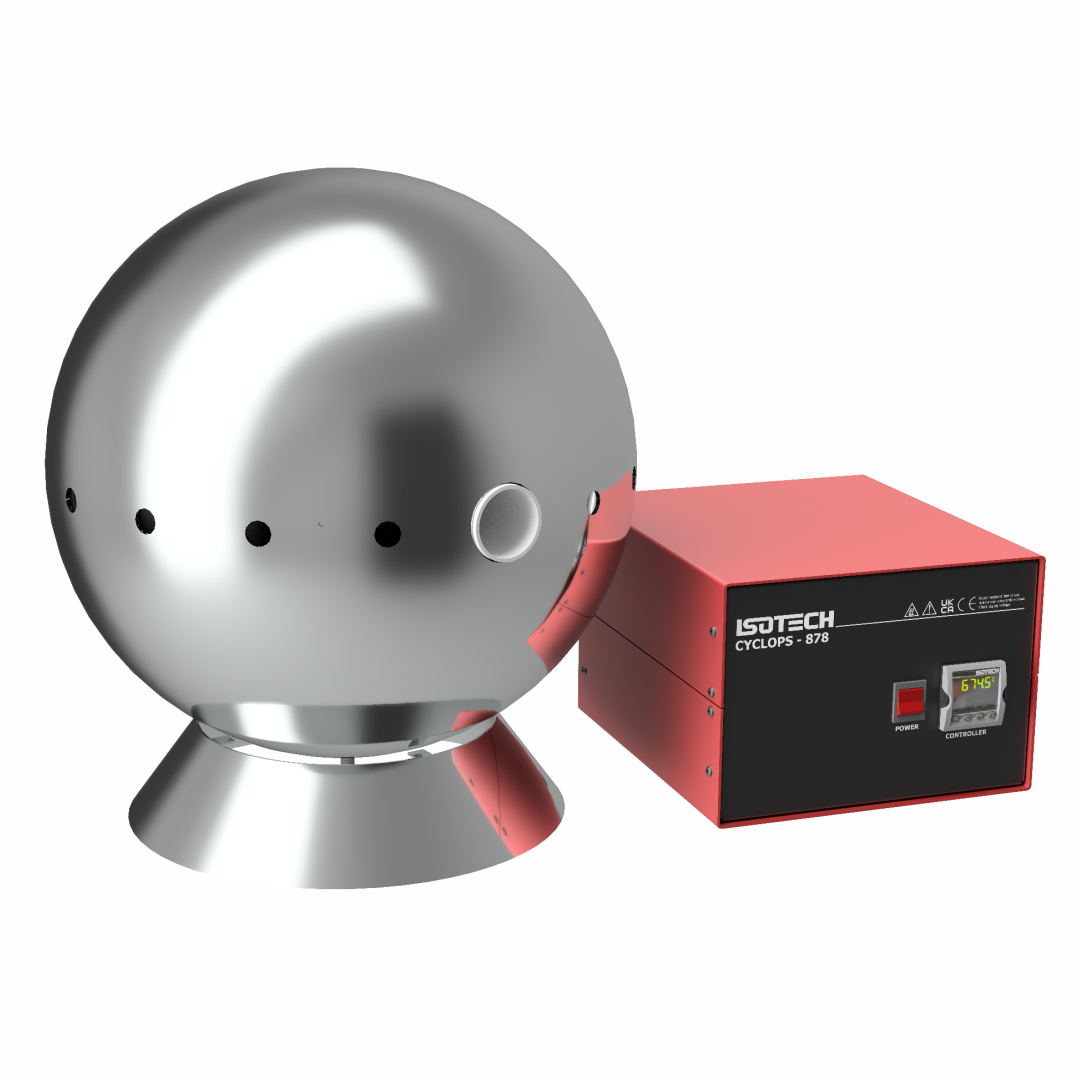

The Cyclops Model 878 is a spherical blackbody source. It consists of an inner black sphere that sits inside a spherical furnace and is suitable for use as a radiation source for infrared thermometers.

The inner sphere has a nominal diameter 230mm is accessed by an optical sighting tube. The furnace can be supplied in one of two constructions, one providing an aperture size of 17mm and one of 45 mm.

The furnace can be adapted for thermocouple operation by replacing the inner sphere with an equalizing block and using a different control sensor.

Technical FeatureValue
Model878
Temperature Range100°C to 1300°C
EmissivityGreater than 0.999
Stability±0.1°C
Display Resolution0.1°C to 999.9; 1°C from 1000 to 1300
Time to temperature90 mins hour to 700°C. 4 hours to 1300°C
PC InterfaceIncluded
Power3kW typical
Voltage100-130 or 208-240 VAC 50/60Hz
Dimensions425mm Diameter
Weight25kg
OptionsCeramic Equalising Block to accept up to 8 thermocouples 878-02-08.
How to orderModel 878 Cyclops – State voltage required. Please state target diameter either 17mm standard or 45mm to special order. Reference Thermocouple Access Point is at position A as Standard, specify if required at point B. State Target Diameter 17 or 45

Cyclops Model 878

100°C to 1300°C

The Cyclops Model 878 is a spherical blackbody source. It consists of an inner black sphere that sits inside a spherical furnace and is suitable for use as a radiation source for infrared thermometers.
